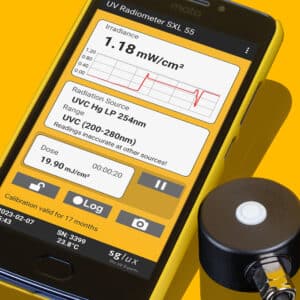

UV Radiometer SXL 55

Smartphone based UV radiometer with dosimeter and data logging feature configurable and calibratable to all types and intensities of UV radiation (as well as UV+VIS, blue light, etc.).
To be used with the customer’s smartphone (Android, from Rev. 6.0) or with an optionally available smartphone.
The price includes one sglux UV sensor with a customized PTB traceable calibration and expert support tailored to the application’s specific requirements.
Also available in customer-specific design (color scheme, logo, additional features).

Single Price: 1.010,00€ – 1.140,00€

Options

Description
Additional information

Additional information

Options	UV-Radiometer SXL 55, UV-Radiometer SXL 55 with case, UV-Radiometer SXL 55 with smartphone and case

We gladly advise you on this product

Romana Sonnenberg
Dipl.-Ing.

+49 (0) 30 53015211

Gabriel Hopfenmüller
Dipl.-Ing.

+49 (0) 30 53015211

UV Radiometer SXL 55 FAQ

Can I connect different sensors to one SXL 55 radiometer?

An SXL 55 can work with all USB probes from sglux. Calibrations are stored in the sensor and are read out by the handheld devices. If sensors with different spectral sensitivities or very different measuring ranges are required, the use of several sensors is unavoidable. However, if calibrations on different emitters are required in a similar measurement range, sglux can also store different calibration factors in a single sensor.

Can I use an SXL 55 radiometer for pulsed lights or flash applications?

The device is not suitable for these measurements of isolated flashes, as the sampling rate is only around 13Hz. We offer probes and TOCONs designed for the detection of fast or short events. Modulated LEDs are no problem for the SXL 55.

Could I use an SXL 55 for process control also for a risk assessment?

In a few special cases, this may be possible, for example when using a very sensitive sensor for UVC low pressure evaluation and using a weighting factor stored by sglux. In most cases, however, process control sensors are too insensitive. In addition, various measurement methods and evaluation approaches are necessary for UVA risk assessment, which cannot be carried out with just one irradiance sensor.

UV Radiometers FAQ

How much does a good UV radiometer cost?

UV radiometers are available on the internet for as little as about €50. However, we do not recommend buying these radiometers, as they usually do not provide any information about the calibration procedure and the spectral properties of the sensor. For hobby UV measurements or for a rough estimate of the UV irradiance during laboratory experiments, we recommend the measuring devices from the American manufacturer Solarmeter. These devices are based on an sglux SiC photodiode, are robust and come with calibration and spectral information. They are offered in various web shops for around EUR 200. The sglux UV radiometers cost about EUR 1,000. They are used in industrial applications or for scientific work where precise knowledge of the irradiance is relevant. In contrast to the Solarmeter products, our radiometers offer additional functions, such as dose measurement and a logging function. The sglux radiometers also have a field of view which is almost perfectly matched to the cosine function. This allows for a good reproducibility of the measurements and a good comparison with measurements taken at other locations. Another advantage of purchasing a sglux measurement device is that that we customize our devices in cooperation with the customer with regard to the dynamic range, the spectral properties and the PTB-traceable calibration, which is always included in the price. This is how we ensure the measurement success of our customers. The measurement devices from sglux are a bit less expensive than other devices on the market that are suitable for professional use. The reason for this is the display unit chosen by sglux, a smartphone. This eliminates the costs of an elaborate in-house production of the display unit. Sometimes a UV radiometer is not enough. This is always the case when knowledge of the total value (integral) of a radiation source does not provide sufficient information, but rather the spectrum of the source, resolved by wavelength, is to be determined. For this, a spectroradiometer is required. In our laboratories, we use the BTS spectrometers from Gigahertz Optik for this purpose, and we can recommend their purchase.

Which waterproof UV measuring device can I operate permanently outdoors?

sglux offers the UV transmitter, a solar-powered network node with a connection to the mobile phone network or the UVMicrolog data logger. Both devices can be equipped with different sensors and different calibrations.

Which device is suitable for a belt application (sterilization or curing line)?

sglux is specialized in in-line monitoring, i.e. the continuous monitoring of emitters using permanently installed sensors. By using the radiation-hard semiconductor material SiC, this is also possible at very high irradiation. If the design of the system does not permit in-line monitoring, the uvLink or the UVMicrolog can move across the conveyor belt.

Which devices are suitable for DVGW/ÖNORM-compliant measurement?

sglux offers the UVRRM reference radiometer, which is approved for many years. If more than one or special calibrations are required (e.g. LED), the UV Radiometer SXL 55 or the UVTOUCH should be used.
